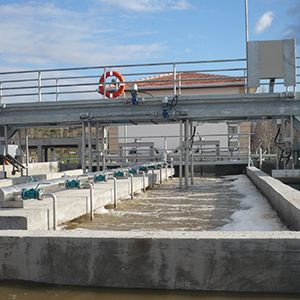

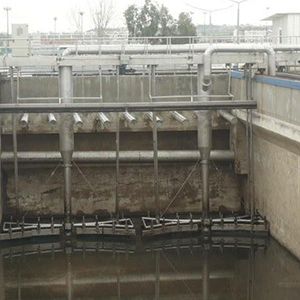

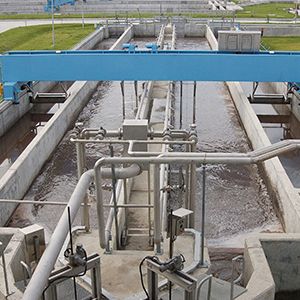

Travelling Bridges are highly efficient scrapers on grit and grease removal. Bridge operation is Fully Automated with PLC facilities on Local Control for longitudinal bridge movement and independent operation of Grit and Grease scraping arms. Optional Submerged Grit Pump is available
Bridge and Scraper Material
AISI 304 ve 316 Series Stainless Steel
Epoxy Painted Carbon Steel
Hot-Dip Galvanised Carbon Steel
Grit and Grease Removal Arms
Independent drive system for each arm
Submerged Grit Pump is Optional
Bridge Drive System
Two Peripheral Wagon with tandem wheels are driven by a Central Drive Unit.
Guide Wheel System
Longitudinal movement is assured by 4 Guide wheels
Rail Type Guide System is Provided Optionally
Accessories
Grease Discharge Platform and Outlet Troughs
Fully Automated Control panel (PLC)
Spring Preloaded Cable Drum
Parking and Return End Switches
Limit Switches for Scraping Arms
Motion Detector
Obstacle Sensor (Op.)
Electronical Torque Switch (Op.)
Infrared De-icing System (Op.)
Hand Rails
Emergency Stop Button
Entrance Ladder
Ligthing (Op.)
Pre-Cabling (Op.)
